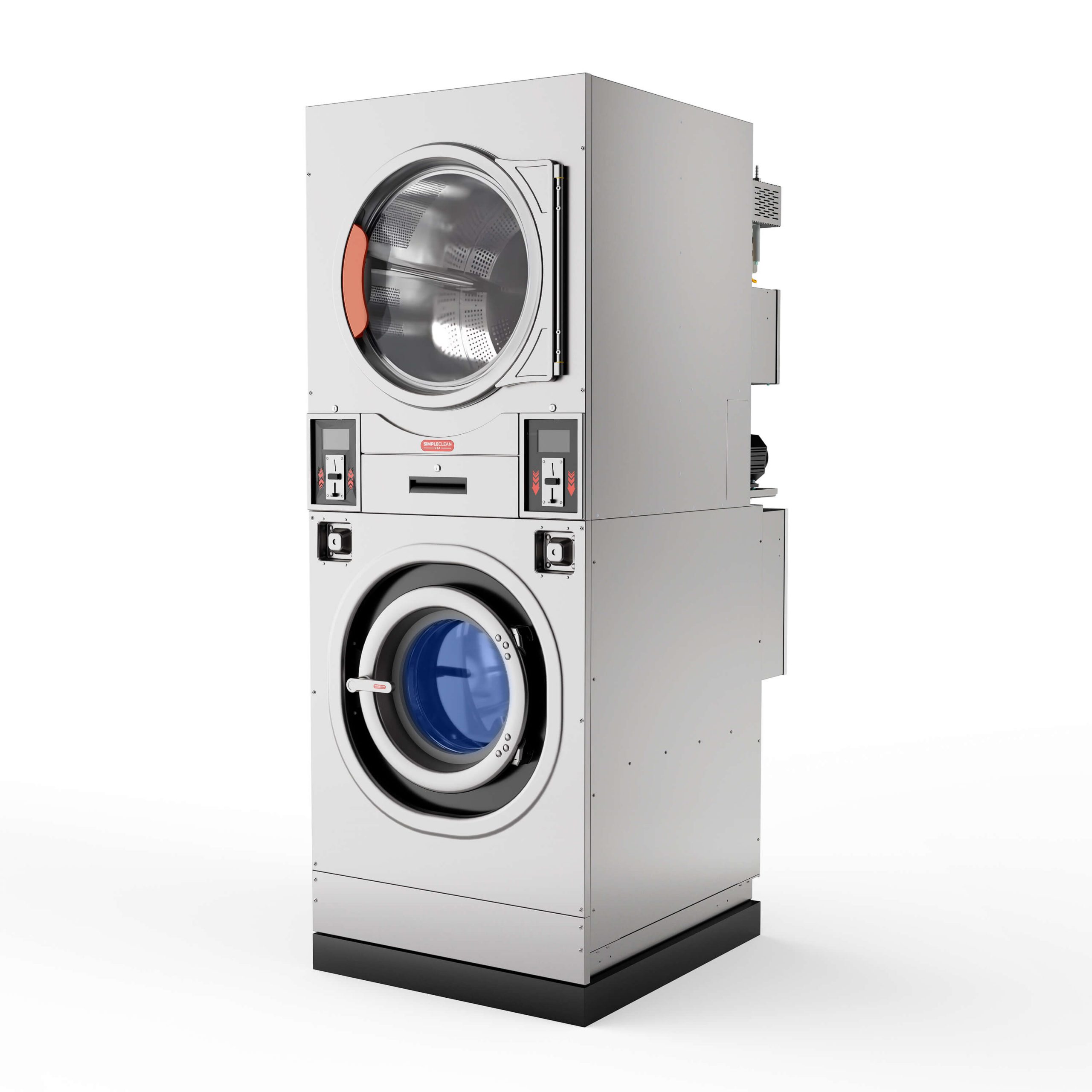

12KG Stack Washer Dryer–EC/12HWDD

Stack type become more popular in single outlet or a huge chain laundromat, it save more space and take higher profitability.
With a variety of washer/dryer edit program and capacity available, there's no doubt that you'll find the ideal washer/dryer combine unit appliance for your laundromat.

Stack type become more popular in single outlet or a huge chain laundromat, it save more space and take higher profitability.

The machine is manufactured in stainless steel drum, top, front and side panels, which gives better elegant look and provides better quality.
The machine is equipped with heavy duty frame and bearings, durable bearing housing, spider and shaft to reduce wear and tear greatly.
Automatic water mixing in washs, which means mixing hot and cold water to a precise temperature with the programmed water level, save energy and reduce wash cycle time.

Advanced inverter drive system and special heavy duty motor are used to provide smooth and reliable performance.
The new system of mixed axial-radial air-flow increases the efficiency of the whole drying process.
Large door opening is convenient for loading and unloading.
Multiple heating way and multiple language options is easier for a common user.

Touch screen and button type controller are both available for customer choice.
Not only stack type save more space but the cost of one unit tends to be less than the cumulative cost of an individual washer and dryer, making them a great choice for budget-conscious laundromat owners.

Model	EC/12HWDD	EC/16HWDD	EC/22HWDD	EC/27HWDD
Washer Drum
Loading Capacity( L-Kg)	26lbs ( 12kg)	35lbs ( 16kg)	48.4lbs(22kg)	59.4lbs(27kg)
Volume (L)	116	148	194	237
Diameter (mm)	635	635	740	740
Depth(mm)	365	465	450	550
Dryer Drum
Loading Capacity( L-Kg)	26lbs ( 12kg)	35lbs ( 16kg)	48.4lbs(22kg)	59.4lbs(27kg)
Volume (L)	229	286	379	477
Diameter (mm)	745	745	855	855
Depth(mm)	525	655	660	830
Washer Speed
Washing Speed ( rpm)	32	32	32	32
High speed (rpm)	750	750	700	700
G-Force	204	204	207	207
Dryer Speed
Tumbler Speed ( rpm)	32	32	32	32
Power
Washer Motor( kw)	1.85	2.2	2.2	3
Washer Heating (kw) Electric heated(kw)	2*4	3*4	4*4	5*4
Washer Inverter Power(kw)	2.2	2.2	2.2	3.7
Dryer Motor( kw)	0.25	0.25	0.55	0.55
Dryer fan Motor( kw)	0.37	0.37	0.75	0.75
Dryer heating( kw)(Electric model)	10.5	10.5	13.5	19.8
Washer’s Connections
Water cold or hot Inlet ( inch)	3/4	3/4	3/4	3/4
Drain size (inch)	3	3	3	3
Dryer’s Connection
Gas Inlet (inch)	1/2	1/2	1/2	1/2
Exhaust Pipe(mm)	190	190	190	190
Dryer’s Energy consumption
Gas Consumption（kg/H）	0.6	0.8	1	1.3
CFM (Btu/H)	55000	75000	95000	115000
Air Flow（m³/h）	800	800	1000	1000
Net dimensions
LWH (mm)	800×1053*2008	800×1183×2108	910×1188×2318	910x1358x2318
Net weight(kg)	397	423	486	522
Wood box dimensions
LWH (mm)	950×1203*2158	950×1333×2258	1060×1338×2468	1060x1508x2468
Gross Weight(kg)	437	463	526	562
Heating way
Wash: Electricity or Hot water Dryer: Gas or Electricity
Usage way
Coin or OPL
