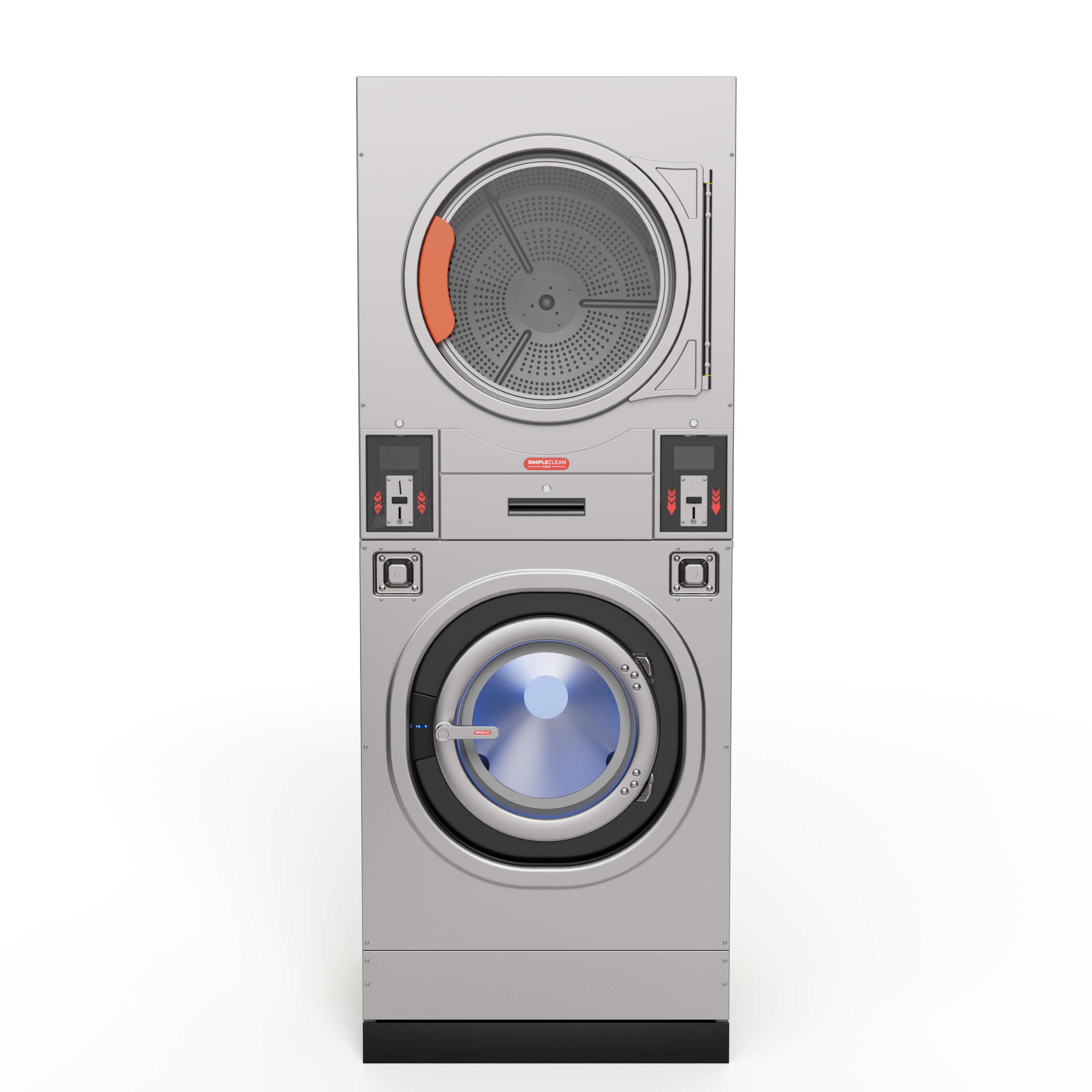

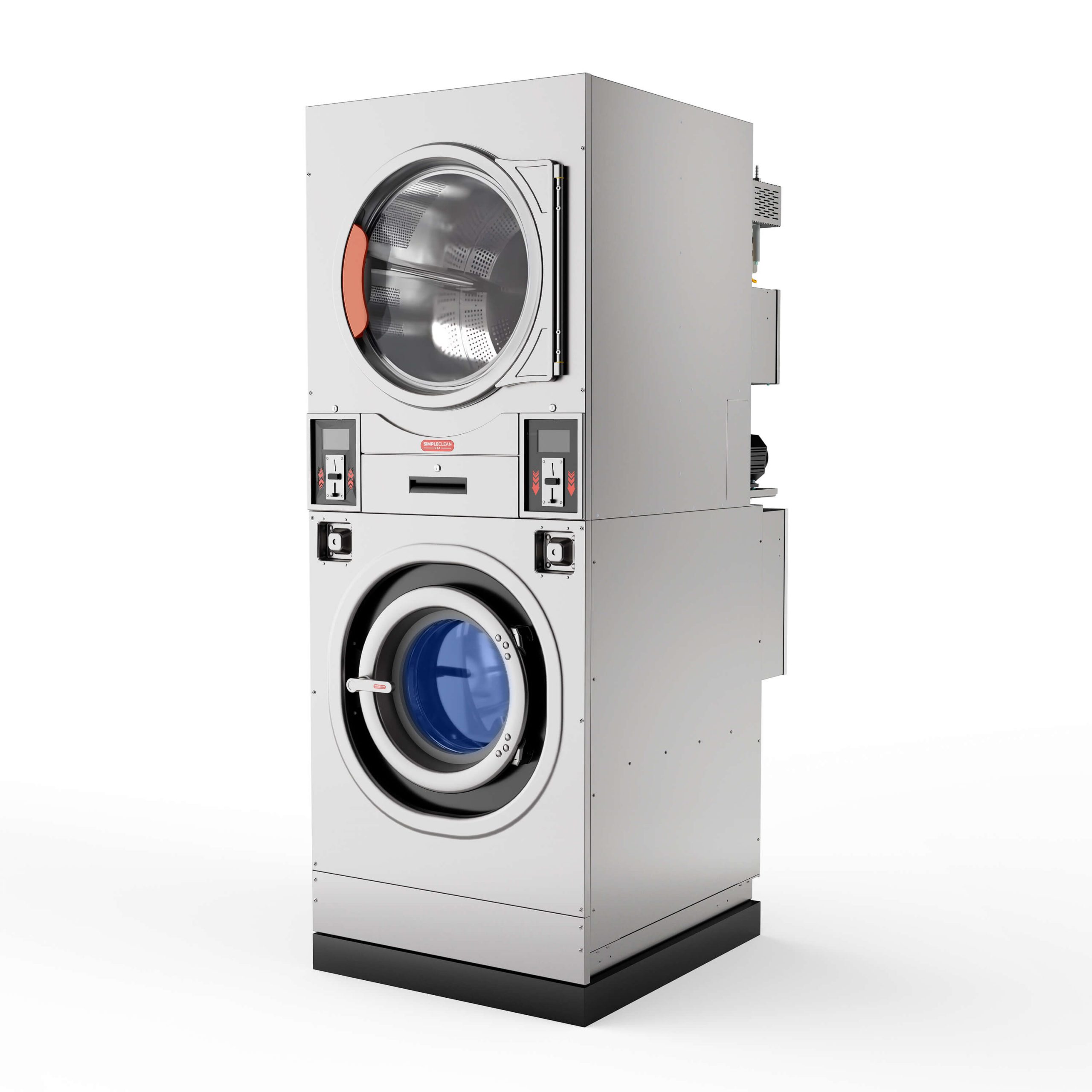

16KG Stack Washer Dryer–EC/16HWDD

  • Stack type become more popular in single outlet or a huge chain laundromat, it save more space and take higher profitability.
  • With a variety of washer/dryer edit program and capacity available, there's no doubt that you'll find the ideal washer/dryer combine unit appliance for your laundromat.

Send E-mail Chat now

  • Application
  • Feature
  • Technical Parameters
  • Inquiry

Application

  • Stack type become more popular in single outlet or a huge chain laundromat, it save more space and take higher profitability.

Feature

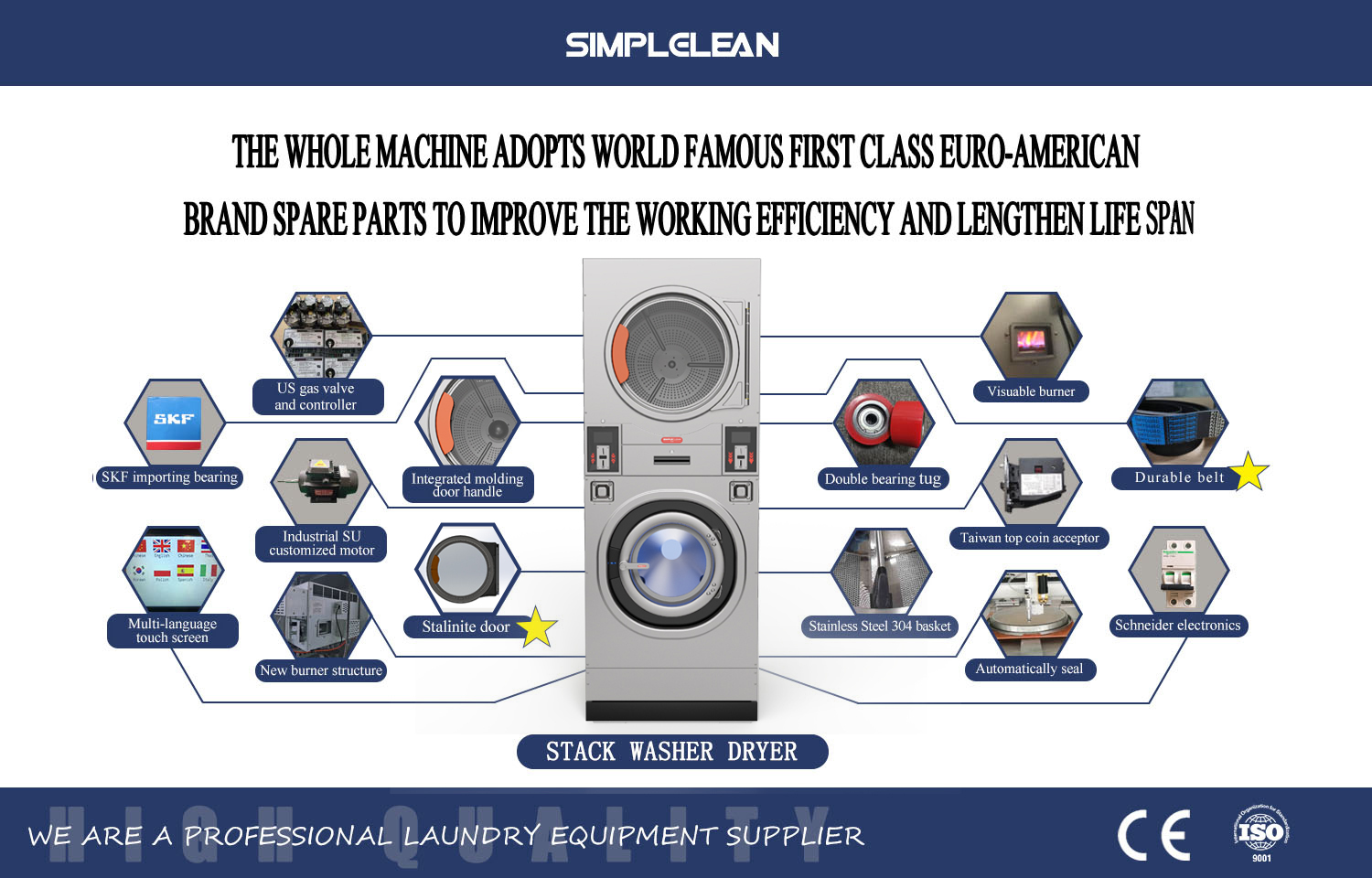

  • The machine is manufactured in stainless steel drum, top, front and side panels, which gives better elegant look and provides better quality.
  • The machine is equipped with heavy duty frame and bearings, durable bearing housing, spider and shaft to reduce wear and tear greatly.
  • Automatic water mixing in washs, which means mixing hot and cold water to a precise temperature with the programmed water level, save energy and reduce wash cycle time.
  • Advanced inverter drive system and special heavy duty motor are used to provide smooth and reliable performance.
  • The new system of mixed axial-radial air-flow increases the efficiency of the whole drying process.
  • Large door opening is convenient for loading and unloading.
  • Multiple heating way and multiple language options is easier for a common user.
  • Touch screen and button type controller are both available for customer choice.
  • Not only stack type save more space but the cost of one unit tends to be less than the cumulative cost of an individual washer and dryer, making them a great choice for budget-conscious laundromat owners.

STACK WASHER DRYER

Model EC/12HWDD EC/16HWDD EC/22HWDD EC/27HWDD
Washer Drum
Loading Capacity( L-Kg) 26lbs ( 12kg) 35lbs ( 16kg) 48.4lbs(22kg) 59.4lbs(27kg)
Volume (L) 116 148 194 237
Diameter (mm) 635 635 740 740
Depth(mm) 365 465 450 550
Dryer Drum
Loading Capacity( L-Kg) 26lbs ( 12kg) 35lbs ( 16kg) 48.4lbs(22kg) 59.4lbs(27kg)
Volume (L) 229 286 379 477
Diameter (mm) 745 745 855 855
Depth(mm) 525 655 660 830
Washer Speed
Washing Speed ( rpm) 32 32 32 32
High speed (rpm) 750 750 700 700
G-Force 204 204 207 207
Dryer Speed
Tumbler Speed ( rpm) 32 32 32 32
Power
Washer Motor( kw) 1.85 2.2 2.2 3
Washer Heating (kw) Electric heated(kw) 2*4 3*4 4*4 5*4
Washer Inverter Power(kw) 2.2 2.2 2.2 3.7
Dryer Motor( kw) 0.25 0.25 0.55 0.55
Dryer fan Motor( kw) 0.37 0.37 0.75 0.75
Dryer heating( kw)(Electric model) 10.5 10.5 13.5 19.8
Washer’s Connections
Water cold or hot Inlet ( inch)  3/4  3/4  3/4  3/4
Drain size (inch) 3 3 3 3
Dryer’s Connection
Gas Inlet (inch)  1/2  1/2  1/2  1/2
Exhaust Pipe(mm) 190 190 190 190
Dryer’s Energy consumption
Gas Consumption(kg/H) 0.6 0.8 1 1.3
CFM (Btu/H) 55000 75000 95000 115000
Air Flow(m³/h) 800 800 1000 1000
Net dimensions
L*W*H (mm) 800×1053*2008 800×1183×2108 910×1188×2318 910x1358x2318
Net weight(kg) 397 423 486 522
Wood box dimensions
L*W*H (mm) 950×1203*2158 950×1333×2258 1060×1338×2468 1060x1508x2468
Gross Weight(kg) 437 463 526 562
Heating way
Wash: Electricity or Hot water   Dryer: Gas or Electricity
Usage way
Coin or OPL
