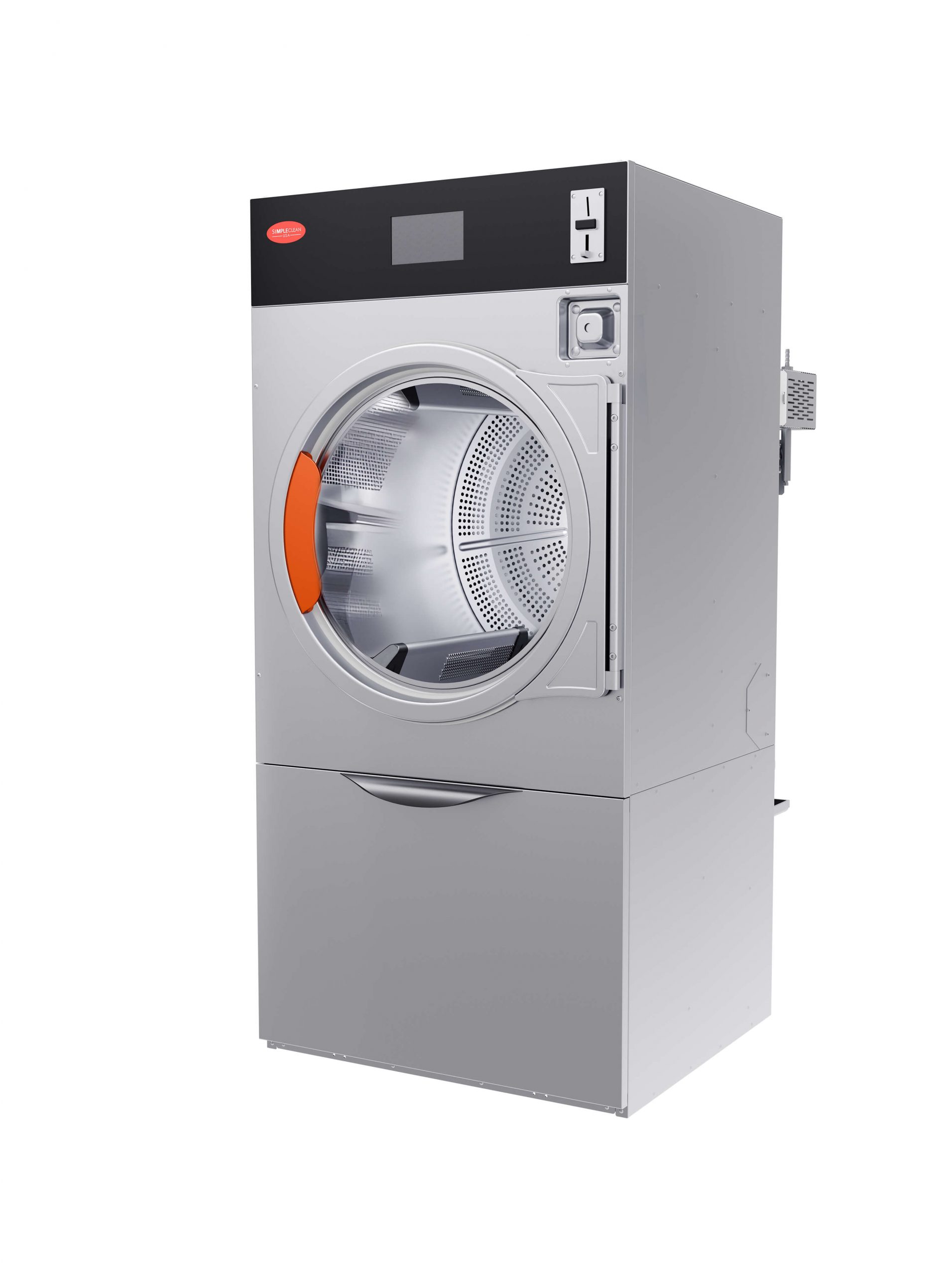

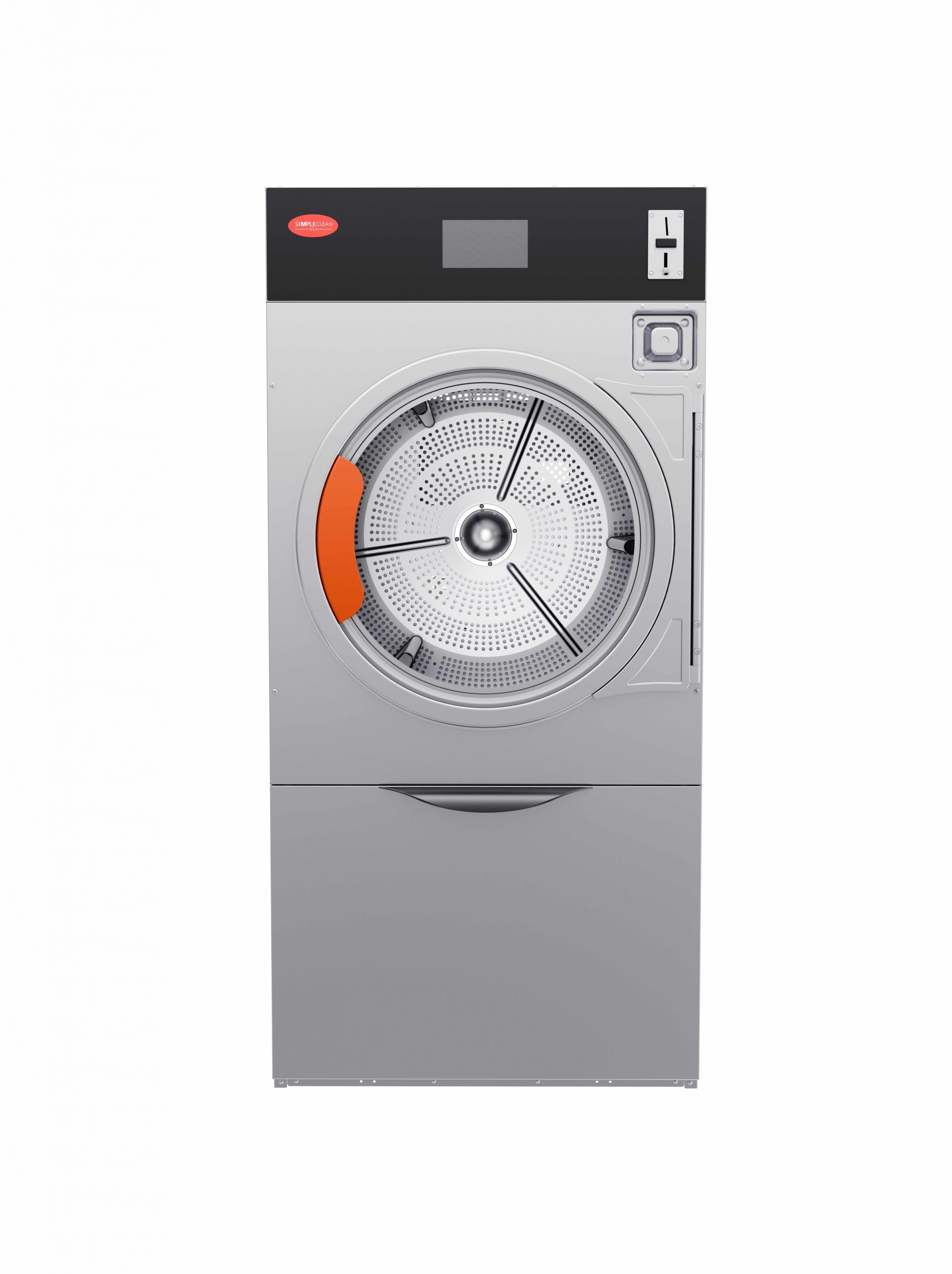

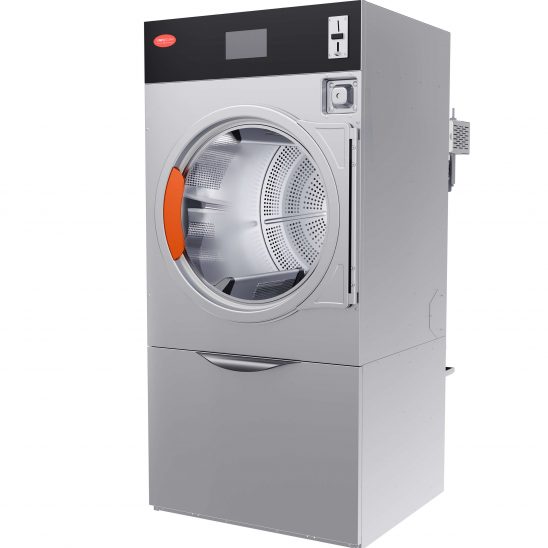

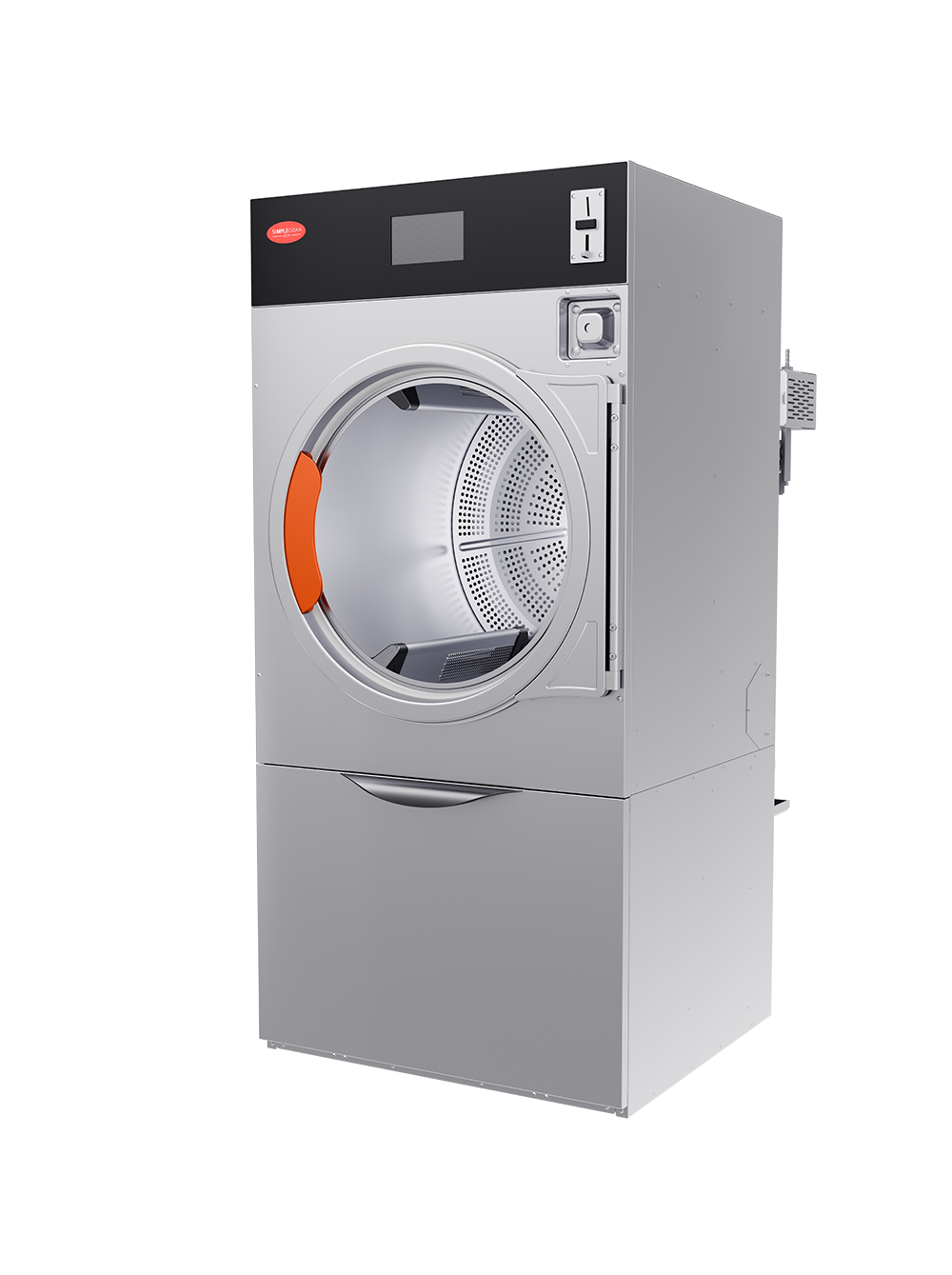

12KG Single Tumble Dryer–EC/12DS

  • High quality washers and dryers are important to keeping nursing home and the healthcare community operations running smoothly.
  • We offers electric options on all machines to accommodate the needs of most ships.

Send E-mail Chat now

  • Application
  • Feature
  • Technical Parameters
  • Inquiry

Application

  • High quality washers and dryers are important to keeping nursing home and the healthcare community operations running smoothly.
  • Electric and gas heating modes and more heating modes are provided for application scenarios.
  • Emergency control switch for customers to ensure safety in dangerous situations

Feature

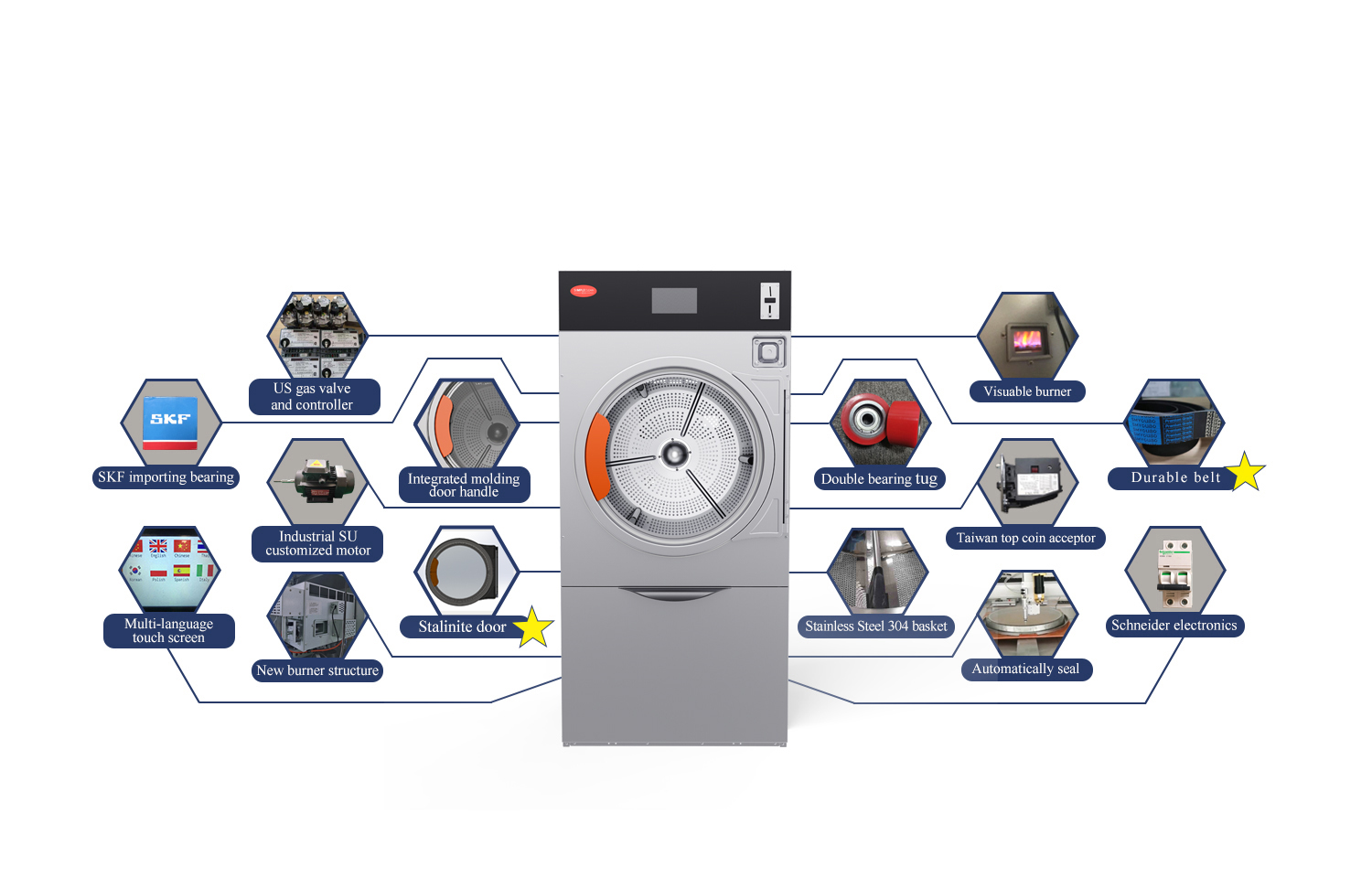

  • The dryer is manufactured in stainless steel tub, drum, top, front and side panels, which gives better elegant look and provides better quality.
  • The dryer is equipped with heavy duty frame, bearing, shaft to reduce wear and tear greatly.
  • The new system of mixed axial-radial air-flow increases the efficiency of the whole drying process.

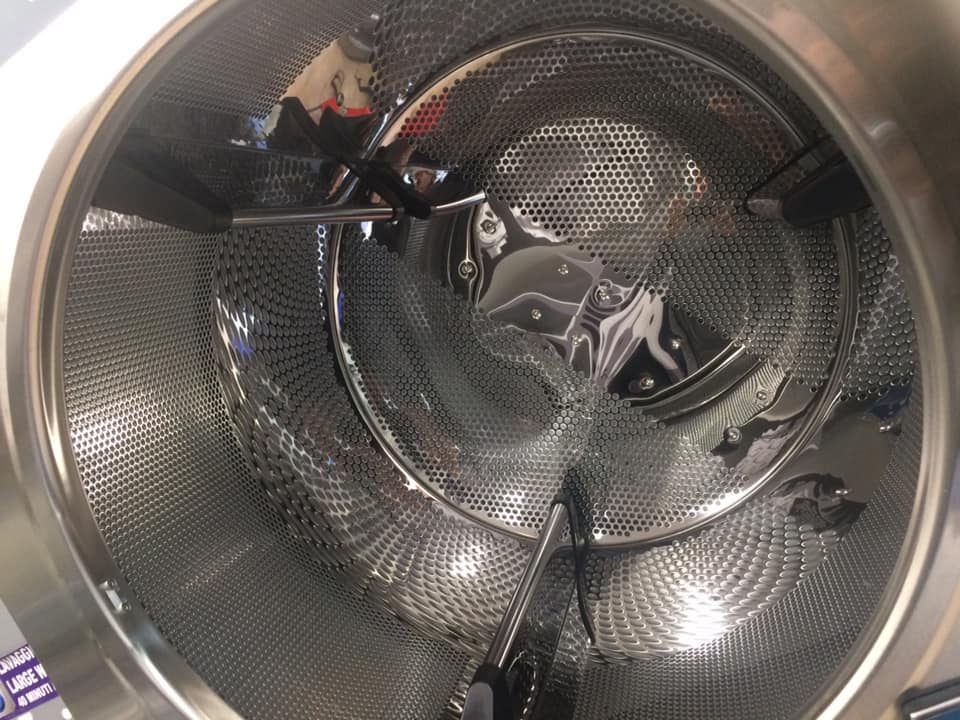

  • Honeycomb structure of inner drum can reach more working efficiency and drying quality.

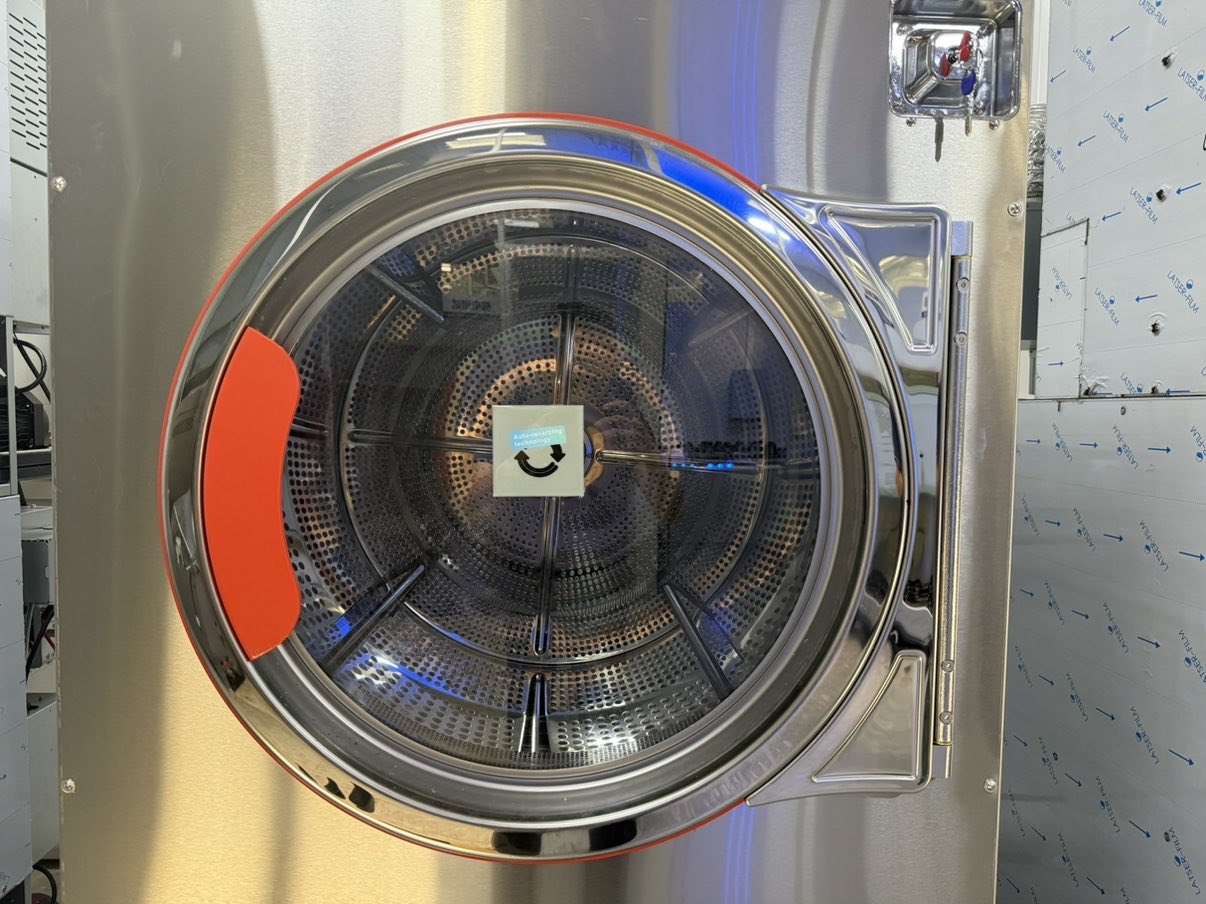

  • Large door opening is convenient for loading and unloading.
  •  Multiple heating way is available for different environments use.
  • Large and easy lint collector simplifies clean up.
  • Touch screen and button type controller are both available for customer choice.

SINGLE TUMBLE DRYER

Model EC/12DS EC/16DS EC/22DS EC/27DS
Drum
Loading Capacity( L-Kg) 28lbs ( 13kg) 35lbs ( 16kg) 48.4lbs(22kg) 59.4lbs(27kg)
Volume (L) 635*650 745*655 855*660 965*665
Power
Main Motor( kw) 0.25 0.25 0.75 0.75
Fan motor (kw) 0.37 0.37 0.75 0.75
Heating (kw) Electric heated 10.3 10.3 13.5 13.5
Gas Consumption/H 0.6kg 0.8kg 1kg 1.3kg
CFM (Btu/H) 55000 75000 95000 115000
Air Flow 800 800
Connection
Gas Inlet (inch) 1/2 1/2 1/2 1/2
Exhaust Pipe(mm) 190 190 190 190
Net dimensions
L*W*H (mm) 800×1044×1002.5 800×1174×1002.5 910×1180×1112.5 910×1350×1112.5
Net weight (kg) 139 158.5 178 197.5
Wood box dimensions
L*W*H (mm) 950×1194×1077.5 950×1324×1077.5 1060×1330×1187.5 1060×1500×1187.5
Gross Weight 154 173.5 193 212.5
Heating way
Electricity, Gas
Usage way
Coin or OPL
