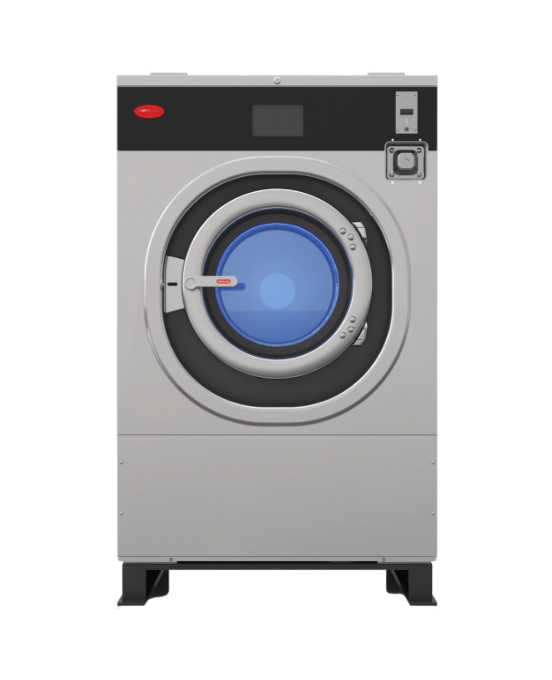

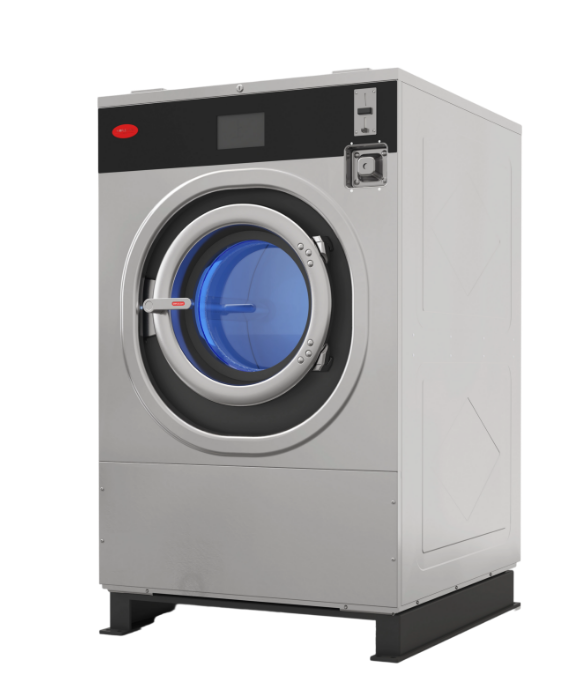

22KG Soft Mount High Spin Washer Extractor–EC/22FW

  • Semi-automated laundry improves the working speed and efficiency of employees in laundry factory.
  • Keep textile clean in cruise liner, make your customer enjoy the clean tidy living environment.
  • All washer install UV light help to kill bacteria, especially in Inn, B&B, Hostel, Resort, Guest House, Capsule Hotel.

Send E-mail Chat now

  • Application
  • Feature
  • Technical Parameters
  • Inquiry

Application

  • Semi-automated laundry improves the working speed and efficiency of employees in laundry factory.
  • Keep textile clean in cruise liner, make your customer enjoy the clean tidy living environment.
  • All washer install UV light help to kill bacteria, especially in Inn, B&B, Hostel, Resort, Guest House, Capsule Hotel.

Feature

  • Double safety door lock system ensures safe operation and minimizes the risk of accidents.
  • Honeycomb structure of inner drum can reach more working efficiency and washing quality.
  • High spinning speed can reach to 330G-factor that removes more water to reduce drying time and save energy, and bolting down is not required.
  • Automatic water mixer, which means mixing hot and cold water to a precise temperature with the programmed water level, save energy and reduce wash cycle time.
  • Manufactured in stainless steel tub, drum, top, front and side panels, which gives better elegant look and provides better quality.
  • Advanced inverter drive system and special heavy duty motor are used to provide smooth and reliable performance.
  • Multiple language options is easier for common user.
  • Touch screen and button type controller are both available for customer choice.
  • Self-developed software App and remote control system is more convenient for self-service laundry owner and user.

SOFT MOUNT WASHER

Model EC/12FW EC/16FW EC/22FW EC/27FW
Drum
Loading Capacity( Kg) 12 15 20 25
Diameter (mm) 635 635 740 740
Depth(mm) 365 465 450 550
Speed
Washing Speed ( rpm) 32 32 32 32
Mid spinning speed(rpm) 420 420 420 420
High spinning speed(rpm) 1000 1000 900 900
G-Force 363 363 343 343
Power
Motor( kw) 1.85 2.2 3 3.7
Heating (kw) Electric heated 2*4 3*4 4*4 5*4
Connections
Water inlet(inch) 3/4 3/4 3/4 3/4
Drain diameter(inch) 3 3 3 3
Heating way
Electricity
Outside hot water
